LDav_R32's 1990 Nissan Skyline GTST

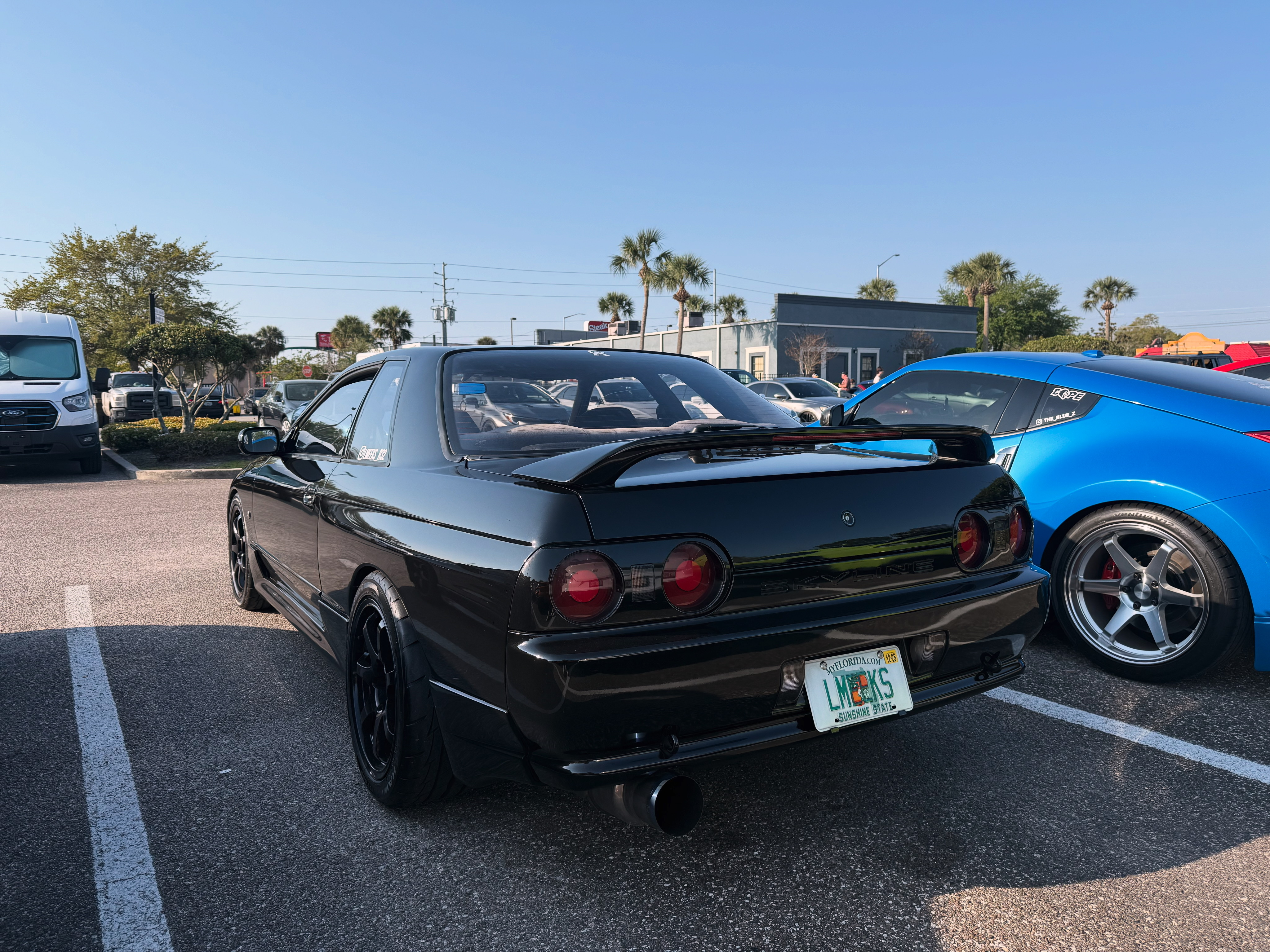

Build Feature Image

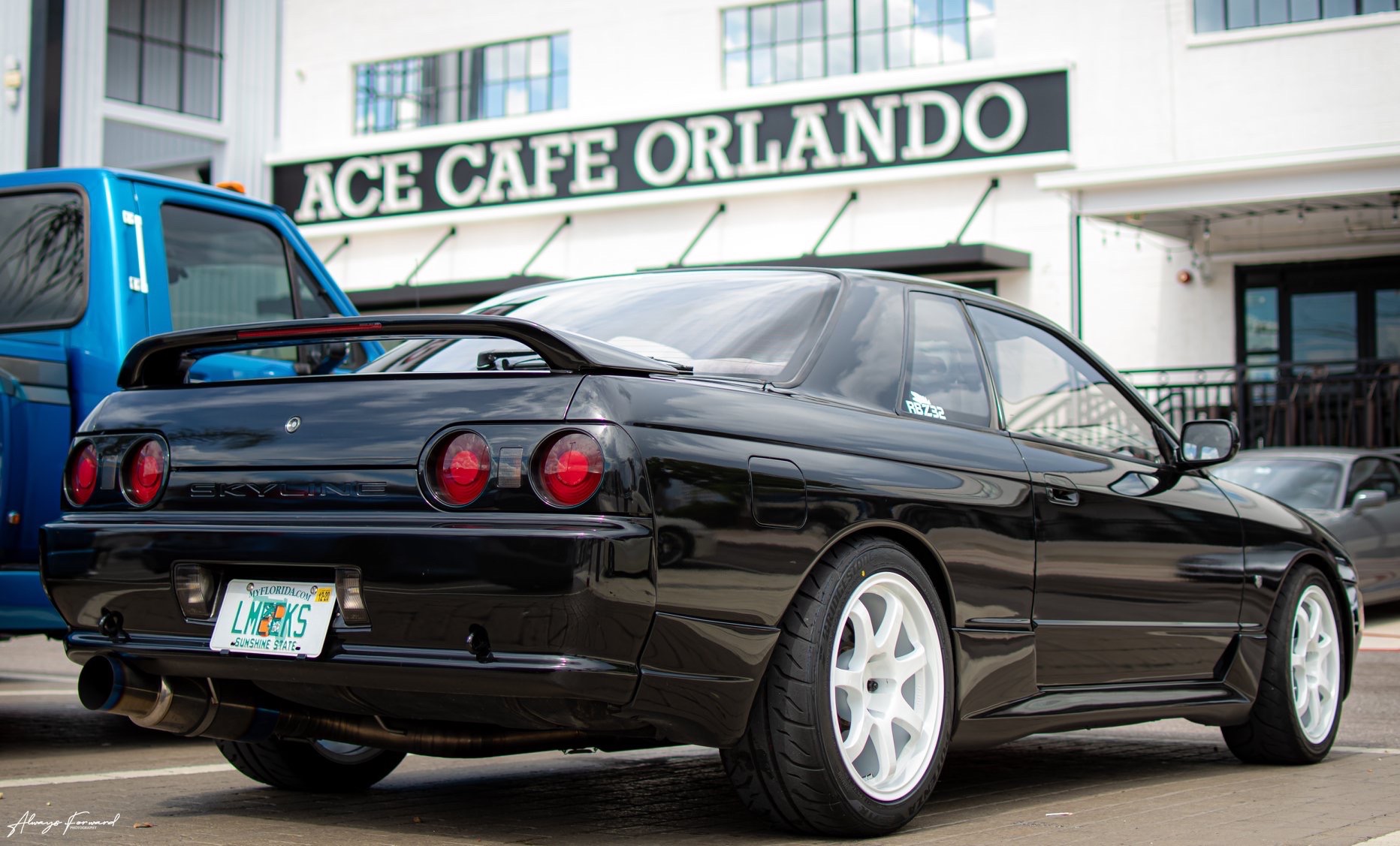

Additional Build Image Additional Build Image Additional Build Image Additional Build Image
jdm drift rhd nissan

Vehicle Specs

Build type: Street/daily

  • Horsepower: 260
  • Torque: 230
  • Curb Weight: 3150
  • Platform Layout: Front Engine RWD
  • Engine Type: Inline-6
  • Engine Code: RB20DET
  • Fuel Type: 93
  • Transmission Type: 5-speed
  • Brake Setup: Big brake disc

Modifications

Brakes

StopTech Power Slot 350z Front Rotors (Not Installed)

StopTech 300ZX Power Slot Rear Rotors (Not Installed)

Nissan R32 Big brake caliper brackets (Not Installed)

Notes: Caliper bracket to suit 350Z/G35 Brembo rotors

Nissan Braded brake lines (Not Installed)

Exhaust

Custom 3" straight pipe, HKS muffler 4" tip (Not Installed)

Exterior

eBay Smoked corner lights (Not Installed)

Custom Vinyl smoked headlights (Not Installed)

Schemenauers 8yr ceramic coating (Not Installed)

Notes: Paint correction and coating done march 2024

Interior

eBay Shift boot & ebrake boot replacements (Not Installed)

Other

GKTech HICAS delete kit (Not Installed)

Notes: HICAS delete bar with toe arm mounts, straight toe arms, poly rear knuckle bushings

Countersteer R32 A/C Conversion kit (Not Installed)

Notes: Converted to R134a w/ compressor and new orings, accumulators/drier, Four Seasons Expansion Vavle (TVX)

Cometic Streetpro top end gasket kit (Not Installed)

Notes: Headgasket, 80mm x .051"

Suspension

ISR Pro Coilovers (Not Installed)

Notes: 8k/6k, 32 way adjustable

Tires & Wheels

MB Weapons (Not Installed)

Notes: Bought used, powder coated, 17x8.5 fronts, 17x9 rears

Build Notes

All gaskets and seals were refreshed in 2022: -Nubis valve cover kit with hardware -Nubis coilpack cover bolt kit -NGK Iridium spark plugs -OEM camshaft seal -OEM front & rear main seals -Nubis rear main seal bolt kit -OEM Water pump -OEM crankshaft sprocket plate (both sides) -OEM crank gear -Nubis crankshaft woodruff key -Nubis cam angle sensor bolt kit -Nubis oil pan bolt kit -All new fluids Head was also rebuilt at that time: -CNC valve job, resurface -OE valves -Lock kit -Springs -Guides -Stem seals -Buckets -Time serts

Edited by LDav_R32 June 17, 2024 at 9:01 PM
